| Categories | Wire Cutting And Stripping Machine |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | Yihan |
| Model Number: | YH-H806 |
| Usage: | Cutting/peeling, Stripping and cutting |
| Name: | Wire Stripping Machine |
| Model: | YH-H806 |
| Size: | 450x430x320mm |
| Weight: | 29KG |
| Stripping length: | Head 0 - 100mm Tail0-60 |
| Cutting length: | 0.1-9999mm |
| Display method: | Chinese or English |
| Stripping range: | external diameter 1-6mm |
| Power supply: | 220V /110V 60Hz/50Hz |
| Packaging Details: | Wooden package |
| Price: | $800.00/sets 1-2 sets |
| MOQ: | 1 set |
| Company Info. |
| Yihan (shenzhen) Automation Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

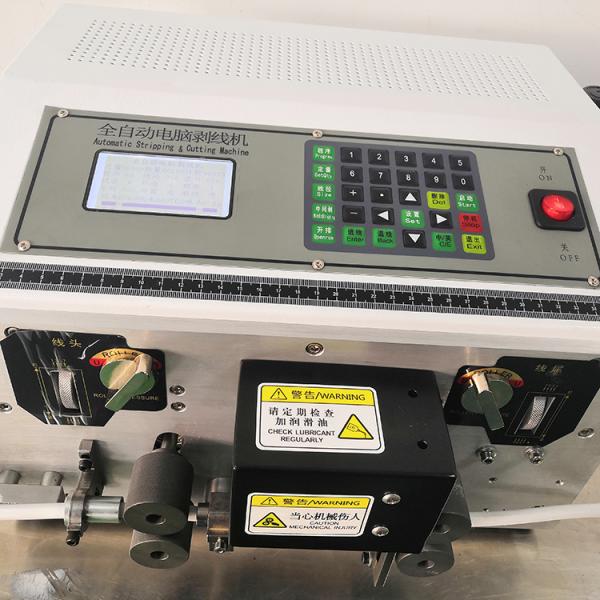

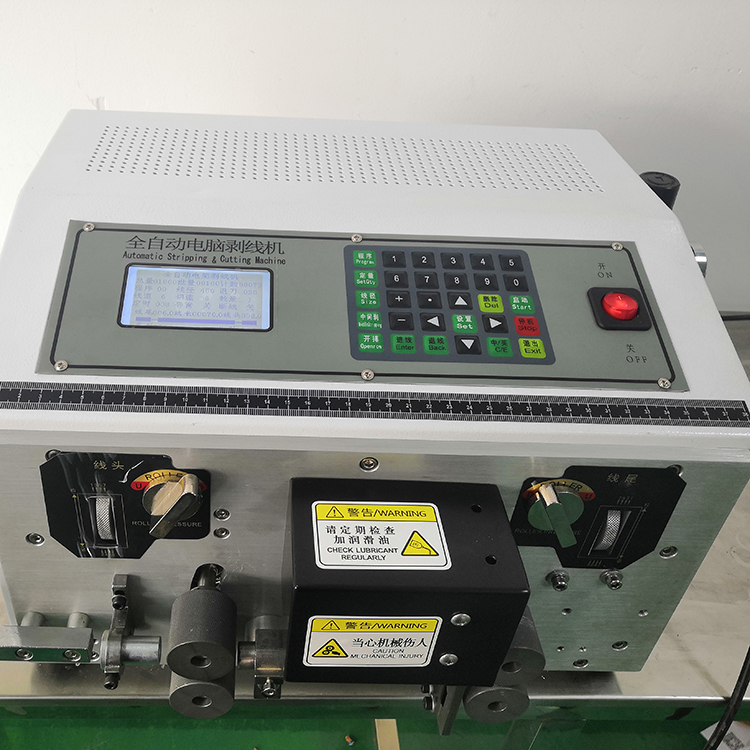

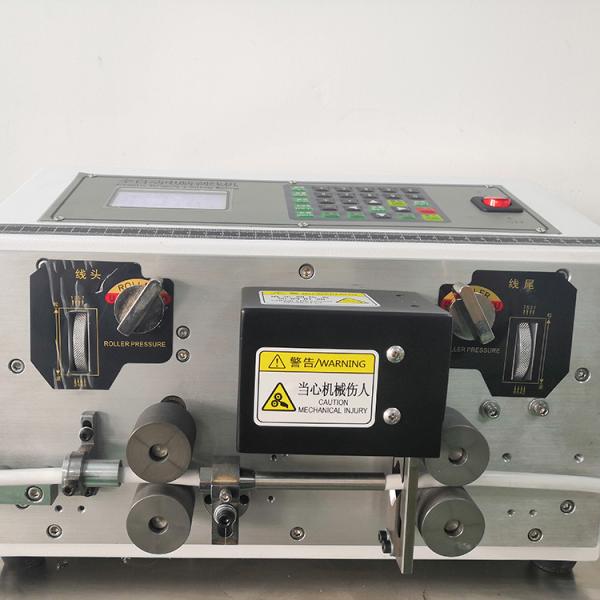

Automatic sheath type computer cutting and stripping machine
Features:
The machine uses the latest 32 intelligent control system, Chinese and English switching liquid crystal display, button operation, can store hundreds of pieces of information, called at any time, fast efficient,Compatible with the general features of 220 # wire cutting machine.Double linear,two wires can be processed simultaneously,not only saves labor and time,but also improve productivity.Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.Automatic cutting, stripping, semi-stripping,multi-segment stripping , twisting function once completed, can instantly transform wire specifications and dimensions,it’s very economic. The machine is mainly used in electronics, electrical appliances, toys, auto parts and other industries.
| Type | YH-H806 |
| Size | 470mm×450×340 |
| Weight | 45kg |
| Display method | Chinese or English interface display |
| Power supply | AC220/50Hz |
| Capacity | 420W |
| Cutting length | 1mm---99999mm |
| Cutting Tolerance | Modifiable |
| Peeling length | 1.0mm-100mm(According to the wire) |
| Applicable wire core area | The outer diameter of 1.5mm to 6mm |
| Productivity | 3500-5000pcs/h(according to the cutting length) |
| Tool Material | Tungsten steel / white steel |
| Warranty | Motherboard and screen are guaranteed for 3 years |
| Cable outer diameter | Adjustable |
| Stripping quality | Excellent |
| Decimal precision | Yes |
| Drive mode | Four simultaneously drive |
| Stripping pressure adjustment: | Adjustable |
| Speed adjustment | 0-9 |
| Stripping Mode | long wire/ short wire /Multi-stripping / multi stripping |
|
