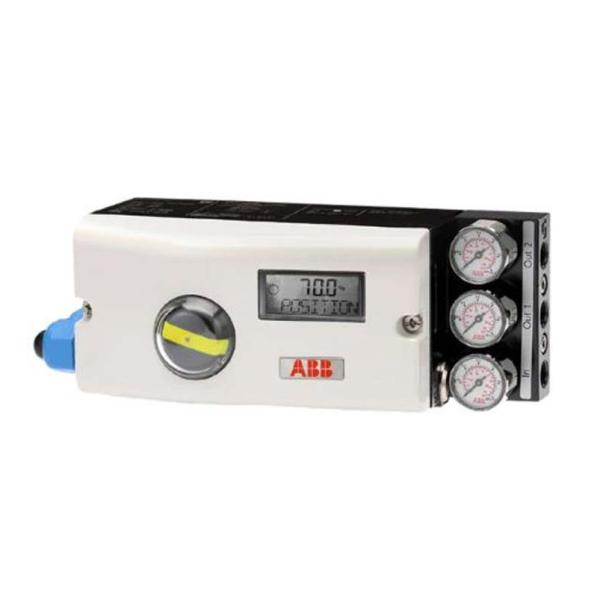

ABB TZIDC Electro-Pneumatic Positioner V18345-1010421001

V18345 - TZIDC

Electro-Pneumatic Positioner, intelligent, configurable, with indicato

and operator panel

Case made of aluminum, varnished, with mechanical position indicator,

for mounting to linear actuators acc. DIN / IEC 534 / NAMUR or to rota

actuators acc. VDI / VDE 3845

Input 4 ... 20 mA, two-wire, with connector plug for LKS adapter and F

module for HART communication, FM / CSA, Double acting, fail freeze,

Cable: Thread 1/2-14 NPT, air pipe: Thread 1/4-18 NPT, Plug-in module

for analog position feedback, signal range 4 ... 20 mA, two-wire,

Without Optional Mechanical Kit for Digital Position Feedback, Standar

Design

• V18345 : TZIDC = intelligent, configurable with indicator and operator panel

• Case / Mounting : 1 = Case made of aluminium, varnished,protection IP 65 (NEMA 4X) for mounting to linear actuators acc. to DIN/IEC 534 / NAMUR or to rotary actuators acc. to VDI/VDE 3845 also ready for integral mounting

• Input / communication port : 1 = Input 4...20 mA, two-wire with connector plug for LKS adapter

• Explosion protection : 0 = without

• Output / safe position (in case of an electrical power failure) : 4 = Double acting, fail safe

• Connections : 2 = Cable: Thread 1/2-14 NPT, Air pipe: Thread 1/4-18 NPT

• Option modules for analog or digital position feedback : 1 = Plug-in module analog position feedback (sign. range 4 … 20 mA)

• Optional mechanical kit for digital position feedback : 0 = without

• Design (varnish / coding) : 1 = Standard

• Output signal (two-wire technology) Nominal range : 4 ... 20 mA

• Digital input : Control voltage 0 ... 5 V DC logical switching state "0" 11 ... 30 V DC logical switching state "1"

• Digital output (control circuit to DIN 19234/NAMUR) Supply voltage : 5 ... 11 V DC

• Supply pressure : 1.4 ... 6 bar (20 ... 90 psi)

• Air consumption : < 0.03 kg/h / 0.015 scfm (independent of supply pressure)

• Housing Material/Protections : Aluminum, protection class IP 65 / NEMA 4X

• Surface/color : Electrostatic dipping varnish with epoxy resin, stove-hardened. Case varnished black, RAL 9005, matte, housing cover Pantone 420.

• Pneumatic connections : Threads G 1/4 or 1/4-18 NPT
