4NO AC Electrical Magnetic Contactor Single Phase 35mm Din Rail Mounting

Magnetic 4P 63A 220v General Electric AC NCT Contactor For Home System with Manual Handle

Technical Data:
Rated current(In):20,25,40,63,80,100A
Rated operational voltage(Ue):230/240VAC,400/415VAC
Number of module:1M,2M,3M
Rated frenquency:50/60Hz
Utilization category:AC1,AC3,AC7a,AC7b,AC5b
Electrical endurance:150,000cycles(AC1,AC7a,AC3,AC7b)
Mechanical endurance:1,000,000cycles
Rated insulation voltage(Ui):500VAC
Rated impulse withstand voltage(Uimp):4KV
Terminal:pillar type
Cable termination:16/25mm2
Torque of screw:1.2/2Nm
IP degree:IP20
Standard:IEC/EN61095,IEC/EN60947-1

NCT series Modular AC contactor Can be used to remote control applications in the altermative networks:Lighting, heating, ventilation, roller blinds, sanitary hot water,Mechanical ventilation system, Load-shedding of non-priority circuits,etc.
AC contactor belongs to modular controlling electrical equipment, which has novelty structure, compact size, it is DIN-RAIL type, size of modular, modeling artistic. use of safety, direct acting inversion. And it can install in the distribution boards along with breakers.

Catalog No. CTN Size:46.5x24x17.5CM

Model	Description	QTY/Box	QTY/CTN
NCT8-63M-24/40	63A 24V 4NO	1	40
NCT8-63M-48/40	63A 48V 4NO	1	40
NCT8-63M-110/40	63A 110V 4NO	1	40
NCT8-63M-230/40	63A 230V 4NO	1	40
NCT8-63M-24/04	63A 24V 4NC	1	40
NCT8-63M-48/04	63A 48V 4NC	1	40
NCT8-63M-110/04	63A 110V 4NC	1	40
NCT8-63M-230/04	63A 230V 4NC	1	40
NCT8-63M-24/22	63A 24V 2NO+2NC	1	40
NCT8-63M-48/22	63A 48V 2NO+2NC	1	40
NCT8-63M-110/22	63A 110V 2NO+2NC	1	40
NCT8-63M-230/22	63A 230V 2NO+2NC	1	40
NCT8-63M-24/31	63A 24V 3NO+1NC	1	40
NCT8-63M-48/31	63A 48V 3NO+1NC	1	40
NCT8-63M-110/31	63A 110V 3NO+1NC	1	40
NCT8-63M-230/31	63A 230V 3NO+1NC	1	40

Ratings

Utilization category	Ui (V)	Ui (V~)	Conventional heating current (A)	Ie (A)	Controlled power (kW)
AC-1, AC-7a AC-7b	500	230	63	63/25	13/3.8
AC-1, AC-7a AC-7b	500	230	40	40/15	8.4/2.4
AC-1, AC-7a AC-7b	500	230	32	32/12	6.5/1.9
AC-1, AC-7a AC-7b	500	230	25	25/8.5	5.4/1.9
AC-1, AC-7a AC-7b	500	230	20	20/7	4/1.2

Making and breaking capacity

Utilization category	Making and breaking conditions			Electrification time (s)	Interval time (s)	Operating cycle times
	Ic/Ie	Ur/Ue	COSΦ
AC-1, AC-7a	1.5	1.05	0.8	0.05	10	50
AC-7b	8	1.05	0.45	0.05	10	50

Conventional operating performances

Utilization category	Making conditions			Breaking conditions			Electrification time (s)	Interval time (s)	Operating frequency
	Ic/Ie	Ur/Ue	COSΦ	Ic/Ie	Ur/Ue	COSΦ
AC-1	1.0	1.05	0.8	1.0	1.05	0.8	0.05	10	6000
AC-7a	1.0	1.05	0.8	1.0	1.05	0.8	0.05	10	30000
AC-7b	6.0	1.0	0.45	1.0	0.17	0.45	0.05	10	30000

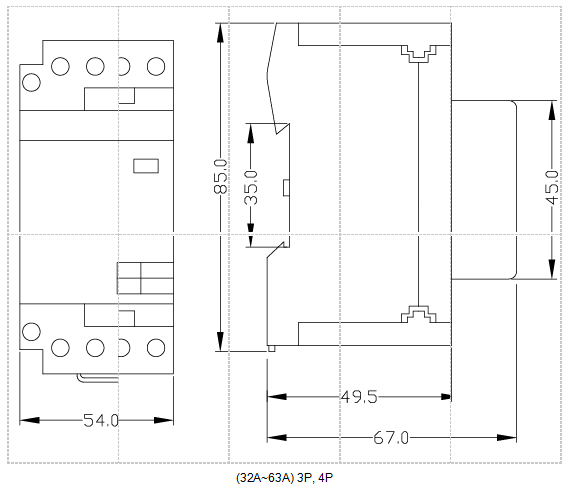

Product Dimension
