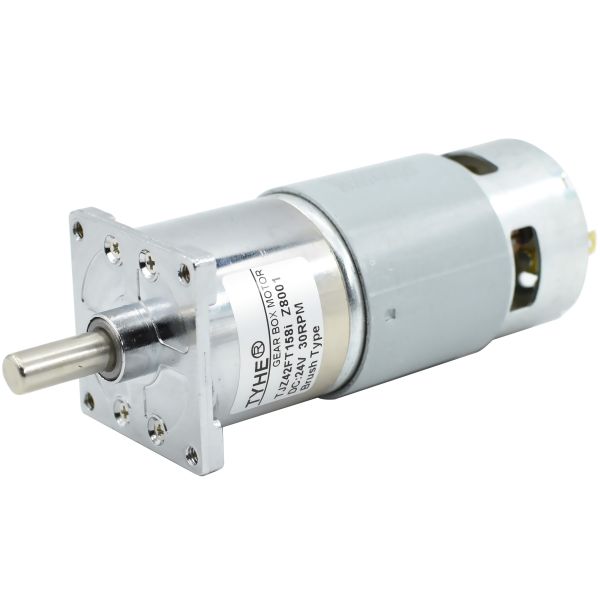

42mm gearbox high strength steel gear 40kgf big torque rs775 12 24 volt dc gear motor for drill

Name: 42mm gearbox high strength steel gear 40kgf big torque rs775 12 24 volt dc gear motor for drill
Brand: TYHE
Price: 1 USD

42mm gearbox high strength steel gear 40kgf big torque rs775 12 24 volt dc gear motor for drill

Categories	DC Spur Gear Motor
Brand Name:	TYHE
Model Number:	TJZ42FT
Certification:	CE/ROHS/ISO9001
Place of Origin:	China
MOQ:	500pcs
Price:	Negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	100000pcs per month
Delivery Time:	15 working days after payment
Packaging Details:	Foam wrapped, carton packed
Size:	42mm
Voltage:	12-24V
Speed:	10-1200rpm
Torque:	5N.m
Gear material:	45# Steel gears
Commutation:	brushed
Type:	Gear Motor, Micro Motor
Usage:	electric drill, screwdriver,garden tool and etc.
Keywords:	42mm gearbox high strength steel gear 40kgf big torque rs775 12 24 volt dc gear motor for drill

Contact Now

Add to Cart

Company Info.

Wenzhou Tyhe Motor Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

42mm gearbox high strength steel gear 40kgf big torque rs775 12 24 volt dc gear motor for drill

Products Description

42mm Gearbox High Strength Steel Gear 40kgf Big Torque 12 24 Volt Dc Gear Motor For Drill

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS775	12	5000	580	4000	1.77	31.60	13.24	62.31	94.80	10.80
RS775	12	7000	760	5600	2.81	38.00	22.28	66.16	114.00	20.00
RS775	24	3500	160	2800	0.59	29.50	8.65	61.08	88.50	4.20
RS775	24	5000	230	4000	0.84	31.00	12.98	64.15	93.00	5.98
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			12V-5000RPM Input				12V-7000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	2.5	1600.0	10.72	63.99	191.97	2240.0	18.05	76.95	230.85
25.7	81	3.1	1290.3	10.72	79.35	238.04	1806.5	18.05	95.42	286.25
25.7	81	3.8	1052.6	10.72	97.26	291.79	1473.7	18.05	116.96	350.89
25.7	81	4.8	833.3	10.72	122.86	368.58	1166.7	18.05	147.74	443.23
25.7	81	6.1	655.7	10.72	156.14	468.41	918.0	18.05	187.76	563.27
25.7	73	6.8	588.2	9.66	156.86	470.59	823.5	16.27	188.63	565.90
25.7	73	8.3	481.9	9.66	191.46	574.39	674.7	16.27	230.24	690.73
25.7	73	10.3	388.3	9.66	237.60	712.80	543.7	16.27	285.72	857.17
25.7	73	12.8	312.5	9.66	295.27	885.81	437.5	16.27	355.07	1065.22
25.7	73	16.4	243.9	9.66	378.32	1134.95	341.5	16.27	454.94	1364.81
25.7	65.6	18.2	219.8	8.68	377.28	1131.84	307.7	14.62	453.69	1361.07
25.7	65.6	22.2	180.2	8.68	460.20	1380.59	252.3	14.62	553.40	1660.20
25.7	65.6	27.4	146.0	8.68	567.99	1703.97	204.4	14.62	683.03	2049.08
25.7	65.6	34.2	117.0	8.68	708.95	2126.86	163.7	14.62	852.54	2557.61
25.7	65.6	43.8	91.3	8.68	907.96	2723.87	127.9	14.62	1091.85	3275.54
29.5	59	48.6	82.3	7.81	906.10	2718.30	115.2	13.15	1089.61	3268.84
29.5	59	59.3	67.5	7.81	1105.59	3316.77	94.4	13.15	1329.51	3988.52
29.5	59	73.0	54.8	7.81	1361.01	4083.04	76.7	13.15	1636.66	4909.98
29.5	59	91.2	43.9	7.81	1700.33	5000.00	61.4	13.15	2044.70	5000.00
29.5	59	117.0	34.2	7.81	2181.35	5000.00	47.9	13.15	2623.14	5000.00
29.5	59	120.0	33.3	7.81	2237.28	5000.00	46.7	13.15	2690.40	5000.00
32.7	53	130.0	30.8	7.01	2177.24	5000.00	43.1	11.81	2618.20	5000.00
32.7	53	158.0	25.3	7.01	2646.18	5000.00	35.4	11.81	3182.12	5000.00
32.7	53	195.0	20.5	7.01	3265.86	5000.00	28.7	11.81	3927.30	5000.00
32.7	53	243.0	16.5	7.01	4069.76	5000.00	23.0	11.81	4894.02	5000.00
32.7	53	311.0	12.9	7.01	5000.00	5000.00	18.0	11.81	5000.00	5000.00
32.7	53	323.0	12.4	7.01	5000.00	5000.00	17.3	11.81	5000.00	5000.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			24V-3500RPM Input				24V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	2.5	1120.0	7.01	59.74	179.21	1600.0	10.52	62.78	188.33
25.7	81	3.1	903.2	7.01	74.07	222.22	1290.3	10.52	77.84	233.52
25.7	81	3.8	736.8	7.01	90.80	272.40	1052.6	10.52	95.42	286.25
25.7	81	4.8	583.3	7.01	114.70	344.09	833.3	10.52	120.53	361.58
25.7	81	6.1	459.0	7.01	145.76	437.28	655.7	10.52	153.17	459.51
25.7	73	6.8	411.8	6.31	146.44	439.31	588.2	9.48	153.88	461.65
25.7	73	8.3	337.3	6.31	178.74	536.22	481.9	9.48	187.83	563.49
25.7	73	10.3	271.8	6.31	221.81	665.43	388.3	9.48	233.09	699.27
25.7	73	12.8	218.8	6.31	275.65	826.94	312.5	9.48	289.66	868.99
25.7	73	16.4	170.7	6.31	353.17	1059.52	243.9	9.48	371.13	1113.40
25.7	65.6	18.2	153.8	5.67	352.21	1056.62	219.8	8.52	370.12	1110.35
25.7	65.6	22.2	126.1	5.67	429.61	1288.84	180.2	8.52	451.46	1354.38
25.7	65.6	27.4	102.2	5.67	530.24	1590.73	146.0	8.52	557.21	1671.62
25.7	65.6	34.2	81.9	5.67	661.84	1985.52	117.0	8.52	695.49	2086.47
25.7	65.6	43.8	63.9	5.67	847.62	2542.85	91.3	8.52	890.72	2672.15
29.5	59	48.6	57.6	5.10	845.88	2537.65	82.3	7.66	888.89	2666.68
29.5	59	59.3	47.2	5.10	1032.12	3096.35	67.5	7.66	1084.60	3253.79
29.5	59	73.0	38.4	5.10	1270.57	3811.70	54.8	7.66	1335.17	4005.51
29.5	59	91.2	30.7	5.10	1587.34	4762.01	43.9	7.66	1668.05	5000.00
29.5	59	117.0	23.9	5.10	2036.39	5000.00	34.2	7.66	2139.93	5000.00
29.5	59	120.0	23.3	5.10	2088.60	5000.00	33.3	7.66	2194.80	5000.00
32.7	53	130.0	21.5	4.58	2032.55	5000.00	30.8	6.88	2135.90	5000.00
32.7	53	158.0	17.7	4.58	2470.33	5000.00	25.3	6.88	2595.94	5000.00
32.7	53	195.0	14.4	4.58	3048.83	5000.00	20.5	6.88	3203.85	5000.00
32.7	53	243.0	11.5	4.58	3799.31	5000.00	16.5	6.88	3992.49	5000.00
32.7	53	311.0	9.0	4.58	4862.49	5000.00	12.9	6.88	5000.00	5000.00
32.7	53	323.0	8.7	4.58	5000.00	5000.00	12.4	6.88	5000.00	5000.00

Please let us know your requirements and we will provide you with transmission solutions.
