| Categories | Graphic LCD Module |
|---|---|
| Brand Name: | HOTHMI |
| Model Number: | HTM160160C |
| Place of Origin: | dongguan,China |
| MOQ: | 2 |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union, MoneyGram |
| Supply Ability: | 99999 |
| Delivery Time: | 25 days |
| Product Type: | COG LCD Module with Panel |
| Display content: | 160X160 |
| Product Application: | Electricity Meter |
| Viewing Angle: | 6H |
| Number of PINS: | FFC-18PIN |
| Special Instructions: | MCU/8bit |
| Driver chip model: | UC1698 |
| Company Info. |
| Hotdisplay Technology Co.Ltd |
| View Contact Details |
| Product List |

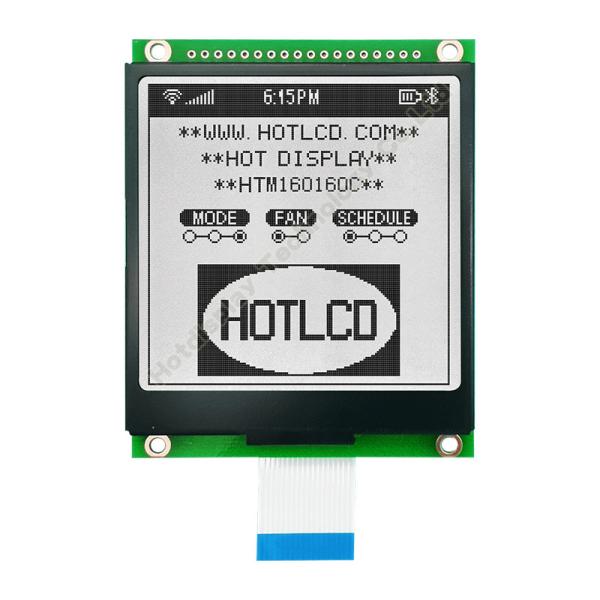

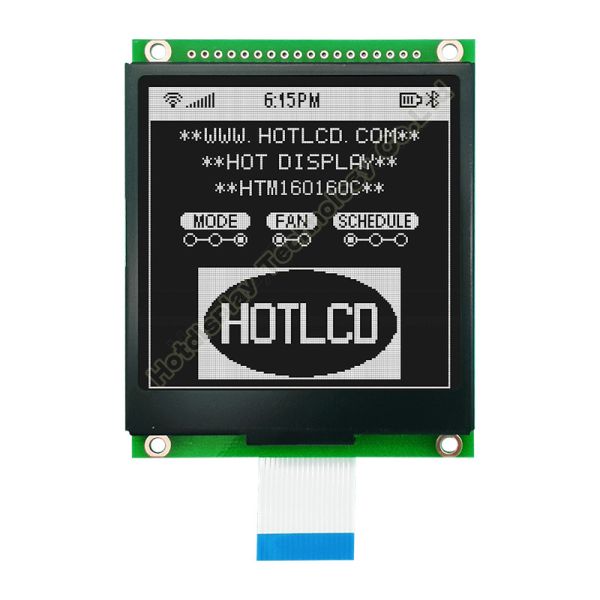

160X160 Graphic LCD Module | FSTN - GRAY Display With White Backlight UC1698/HTM160160C
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 160*160 DOTS | ---- |
| Module dimension | 60.0x60.0 | mm |
| View display area | 54.38*54.38 | mm |
| Dot size | 0.32(W) x 0.30(H) | mm |
| Dot pitch | 0.34(W) x 0.34(H) | mm |
| Operating temp | -20~70 | ℃ |
| Storage temp | -30~80 | ℃ |
Driving Method | 1/ 128 DUTY,1/ 12 BIAS,VOP= 15.0V | |
Viewing direction | 6 O’CLOCK | |
Display mode | FSTN/ (gray) | |
Display type | TRANSMISSIVE / NEGATIVE | |
Driver IC | UC1698 or EQUIV | |
| Backlight | WHITE | |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 82.4x66x9.5 | mm |
| Viewing Area | 60.0x60.0 | mm |
| Mounting Hole | 54.38*54.38 | mm |
| Dot Pitch | 0.34(W) x 0.34(H) | mm |
| Dot Size | 0.32(W) x 0.30(H) | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. | Unit |
|---|---|---|---|
| Input Voltage | VDD | 3.3 | V |
Interface Pin Function
| Pin No. | Pin Name | Function |
| 1 | VSS | Negative power supply,0V |
| 2 | A0 | Data/Command control |
| 3 | /WR | Write Data/Command Clock |
| 4 | /RD | Read Data Clock |
| 5 | /CS | Chip selection input |
| 6 | /RST | Reste, L->H |
| 7 | VDD | Power supply voltage (+3.3V) |
| 8-15 | D0-D7 | Data Bus |
| 16 | BLK | Backlight Power Supply Negative |
| 17 | NC | |
| 18 | BLA | Backlight Power Supply anode (+3.3V) |
| Items | Symbol | MIN. | MAX. | Unit | Condition |
| Supply Voltage | VDD | -0.3 | +4.0 | V | VSS = 0V |
| VDD2 | -0.3 | +4.0 | V | VSS = 0V | |
| Input Voltage | VIN | -0.3 | VDD+0.3 | V | VSS = 0V |
| Operating Temperature | TOP | -20 | +70 | ℃ | No Condensation |
| Storage Temperature | Tst | -30 | +80 | ℃ | No Condensation |
DC Characteristics
| Items | Symbol | MIN. | TYP. | MAX. | Unit | Condition |
| Operating Voltage(1) | VDD | 2.4 | - | 3.6 | V | |
| Driver Voltage | VLCD | -0.3 | - | 19.0 | V | |
| Input High Voltage | VIH | 0.8 x VDD | - | VDD | V | |
| Input Low Voltage | VIL | VSS | - | 0.2 x VDD | V | |
| Output High Voltage | VOH | 0.8 x VDD | - | VDD | V | IOH = -0.5mA |
| Output Low Voltage | VOL | VSS | - | 0.2 x VDD | V | IOL = 0.5mA |
| Input Leakage Current | ILI | - | - | 1.5 | μA | VIN = VDD or VSS |
|
