| Categories | V Wire Screen Pipe |
|---|---|
| Brand Name: | Anping XinLu Wire Mesh Products Co.,Ltd |
| Model Number: | XL- V Wire Screen Pipe - 039 |
| Certification: | ISO |
| Place of Origin: | Anping County, Hebei Province, China |
| MOQ: | 4pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 800pcs / 15days |
| Delivery Time: | 5-7days |
| Packaging Details: | wooden, pallet |
| Filter Name: | V Wire Water Well Screen Pipe |
| Material: | Stainless Steel Grade 304 |
| long: | 3000mm |
| Diameter: | 8" (219mm) |
| V Wire: | 3x5mm |
| Round Support rod :: | ø4.2mm |
| Surface: | polished |
| Usage: | In water well for Sand Control |
| End Joint: | Bevel welded rings |
| Feature: | Corrosion Resistance |
| Welded type: | v wire wrapped welded |
| Collapse strength: | Collapse strength : 105 bar |
| Tensile strength: | 31.9 tons |
| tag: | collapse v wire water well screen pipe ; 100 bar v wire water well screen pipe ; aisi 304 v wire water well screen pipe |
Water Well Screens,also called Johnson screen pipe, johnson screen tube, johnson wire screen, johnson well screen, v wire screens, v wire slot screen, v wire strainer pipe, wire wrapped screen pipe, wire wrapped screen tube, stainless steel filter screen, wedge wire screen, wound screen, slotted screen,v wedge wire screen filter strainers ,deep well water pipes.

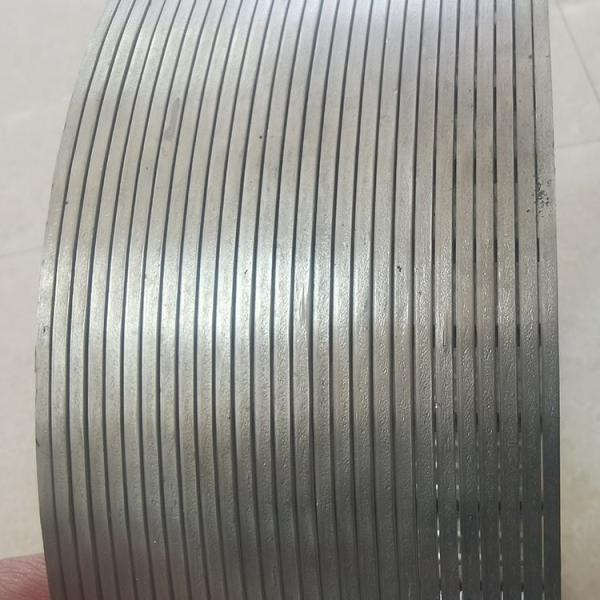

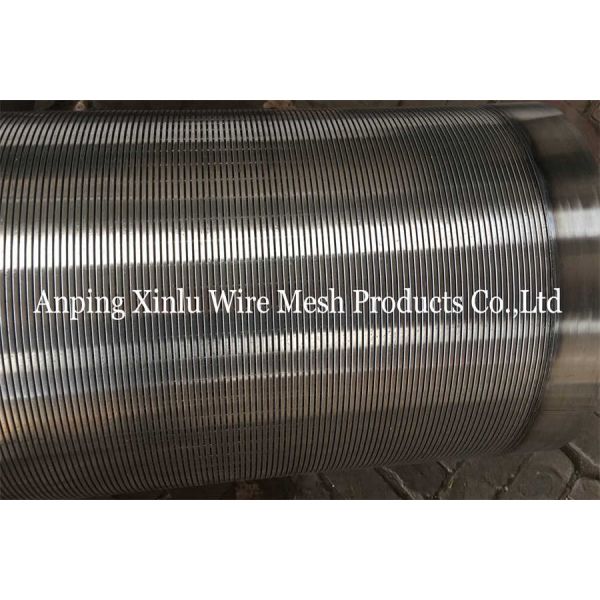

Water Well Screens are made of triangle or wedge wire surface
profiles with continuous slots which supply large open area for
filtration.
The design of water well screens for water infrastructure is reasonable.
Furthermore, they are suitable for hydrology, geology, engineering geology, chemical engineering geology, geothermal air conditioning, foundation precipitation, water source development, farmland and the urban water supply various industries such as construction.
| SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH(BAR) | TENSILE STRENGTH(TON) | WRAP WIRE (WIDTH*HEIGHT)(MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 4.0MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.2MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.2MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.8MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.2MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.2MM/59 |
1. When raw materials arrive at our factory, we will inpsect the
chemical component and then loaded into our warehouse.
2. Our inspector will check during all the procedure.
3. Before be packaged, our sales manager will inspect the goods
with inspector again, approved ones will be labled and packaged.
4. We have person to inspect the loading into container to avoid
damage during transportation.
Johnson V Wire Water Wire Screen Pipe Package
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-20 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q7. What's the wire?
A: Well deep: v profile wire: 2.5x4mm Well deep: 200-300m,
v profile wire: 3x4.6mm Well deep: 350-450m
v profile wire: 3.3x6.5mm Well deep: 500-650m
