High Frequency Welded Pipe Mill for Galvanized Steel Square Tube

Directly Forming Galvanized Steel Square Tube High Frequency Welded Pipe Mill

1.Tube Mill Description

Quick change tube mill is used to product round pipe,square pipe,rectangular pipe and LTZ other profile pipe,this type machine with quick change roller design,the forming and sizing part with two machine bed,one bed online,another bed prepared,when product different size pipe can change roller quickly.in order to save time.

2. Main parameters

• steel material:Q235,Q345 Low carbon steel
• Mechanical properties:σb≤610Mpa,σs≤345MPa
• steel width:40-280mm
• pipe thickness:1.0-4.0mm
• square tube size:20x20- 70x70mm
• pipe length:6-12meter
• factory require:long 100meter,width 6meter(can design layout according to customer factory)

3.Production Process

coil loading→Uncoiler→shear&welder→horizontal accumulator→Forming,HF welder,scraper,cooling,sizing,turkey head→cutting saw→packing→storage

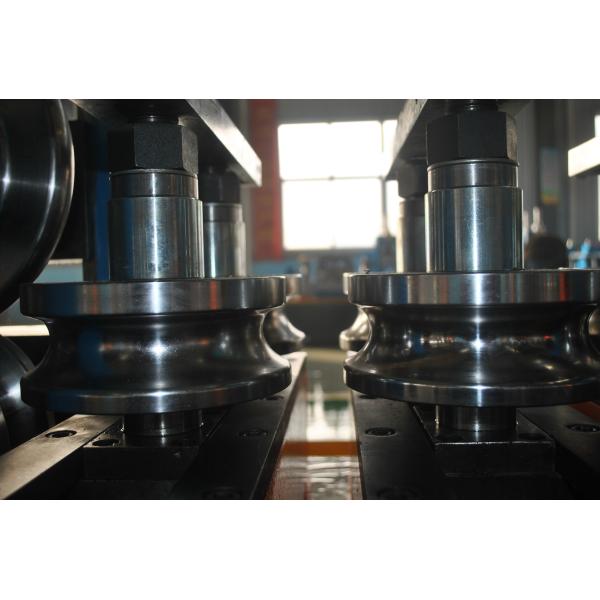

4. Roller

5.Technical Document Provided

• Instruction Manual
• packing list
• layout drawing
• foundation drawing
• electrical diagram
• vulnerable parts drawing

6. After sales service and warranty

After the machine arrives at the buyer,technical service person will go to buyer factory provide guidance on operation,debugging and maintenance the machine,responsible for technical training for equipment operation and maintenance personnel of the buyer.

whole line warranty one year

Hebei tengtian welding pipe equipment manufacturing co., ltd. is a leading domestic professional

manufacturer of welding pipe forming machinery and related products. With more than ten years

of ERW pipe production experience, the factory covers an area of 50,000 square meters, advanced

equipment, the introduction of advanced modern management system, to ensure the quality of products.
After long-term practice, we have a deeper understanding of users' needs.
With the growth of the enterprise, we can provide all range of welded pipe forming machinery from

single machine to complete the pipe mill production line, we also provide "turnkey engineering"

system solutions for our customers from all over the world, including upgrading the old system,

after-sales service completion, test run and worker training services.
The company adheres to the principle of "quality first, customer first", the products are exported

to South America, southeast Asia, Africa, Europe, Australia, Russia, South Korea and other countries

and regions.
Welcome to our factory, we will provide the most suitable technical solution and the most reasonable

price for our customers.The company has obtained ISO 9001 certification, CE certification and

international BV certification.
