| Categories | Printer Mechanism |
|---|---|
| Brand Name: | WOOSIM |
| Model Number: | PORTI-P40/PP40/P240 |
| Certification: | CE,FCC,ROHS |
| Place of Origin: | CHINA |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, L/C,T/T |
| Supply Ability: | 10000PCS/MONTH |
| Delivery Time: | 5-8 work days |
| Packaging Details: | carton, 100pcs/ carton |
| Size: | small 58mm thermal |
| Printing width: | 48mm |
| Paper width: | 58mm |
| Printing method: | Directly thermal |
| Interface: | RS232C, Parallel |
| Resolution: | 203 dpi |
| Speed: | 50mm/s |
| Drive: | support |
| Life: | 50km |
| Input: | 5v, 9v, 12-24v |

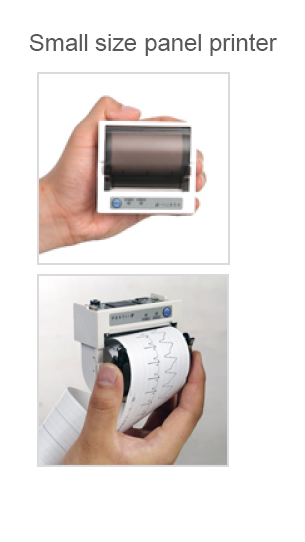

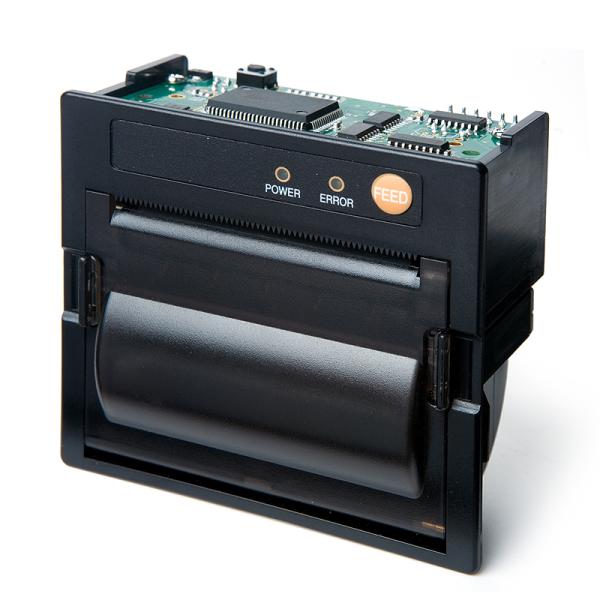

2 inches Mini pocket embedded thermal ticket bill panel printer
PORTI-P40/PP40/P240
Text and graphic support printing
Bit-image(logo) download
Easier paper loading by CLAMSHELL design
Easier maintenance with self-diagnostics
| Item | Specification | |
| Printing | Direct thermal line printing | |
| Characters per line | 42cpl (MAX) | |
| Character size | Eng. : 9x24dots, 12x24dots Kor. : 16x24dots [24x24dots] | |
| Optional Characters | Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Greek, Japanese, Persian, Latin9 and Others upon request. | |
| Resolution | 203dpi, 8dots/mm | |
| Print width | 2-inch (48mm, 384dots) | |
| Printing speed | 50mm/sec (MAX) | |
| Dimensions (WxDxH) | P40/P240 : 80x75x40mm PP40 : 80x75x55mm | |
| Weight | P40/P240 : 96g, PP40 : 108g | |
| Interface | P40/P240 : UART (RS-232C or TTL) PP40 : UART or Parallel | |
| Paper supplied | Thermal roll paper (57mm wide, 40ø), Paper thickness : 60±5㎛ | |
| Barcode supported | 1-dimension : Code128, Code39, I2/5, Code93, UPC-A, UPC-E, EAN8, EAN13, CODABAR 2-dimension : PDF417, QR-Code, DATA Matrix, Micro PDF417, Truncated PDF417 | |
| Driver | Microsoft Windows XP / VISTA / 7 Windows CE, Linux, Android, Blackberry | |
| Receive buffer size | 10K bytes | |
| Input Power | P40 : 9VDC, MAX 3.0A [5VDC, MAX 2.5A] PP40 : 12~24VDC, MAX 3.0A | |
| Operating temperature | -10°C~50°C | |
| storage temperature | -10°C~70°C | |
| MCBF(Mean Cycle Between failure) | Mechanical | 37,000,000 lines |
| Head | Approximately 50 Km | |
|
