| Categories | Boat Rocker Switch |
|---|---|
| Brand Name: | CHIMAI |
| Model Number: | KCD4 |
| Certification: | CE,ROSH,TUV |
| Place of Origin: | CHINA |
| MOQ: | 100PCS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100k/pcs/month |
| Delivery Time: | 7 work days |
| Packaging Details: | plastic bag |
| Material: | pa66 |
| Lamp: | lamp |
| Color: | yellow |
| Terminal: | 4 pins |
| Current: | 15A |
| Company Info. |
| YUEQING CHIMAI ELECTRONIC CO.LTD |
| View Contact Details |
| Product List |

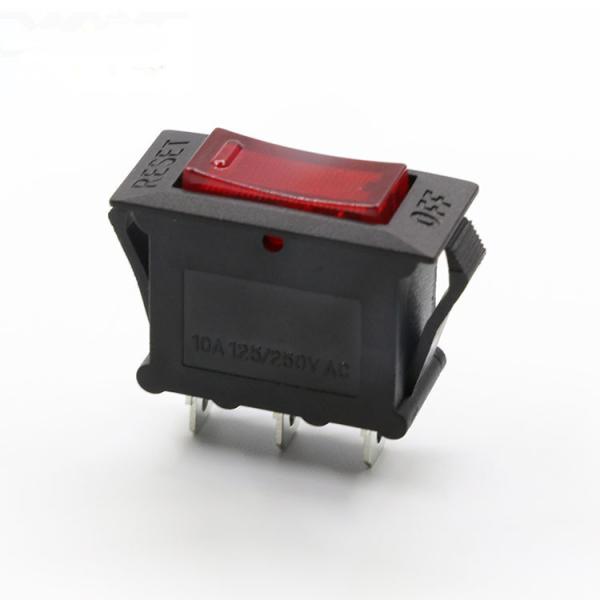

Overload Protection Circuit Breaker Switch Overload Rocker Switch
| NO.1 | Good quality! |
| NO.2 | 10 years manature! |
| NO.3 | Many types of circuit breaker switch we can supply |
| NO.4 | High quality, competitive price, great service! |
| NO.5 | The best indicator light at the best price! |
| Item | 16A ON-OFF Lamp Double 6 Pins Rocker Switch With Dot |
| Material | PA66 /PC |
| Rating | 20A 125VAC/15A 250VAC |
| Single package size | 18X16X8 CM/500PCS |
| Contact Resistance | ≤35MΩ |
| Insulation Resistance | ≥500VDC100mΩ |
| OperatingTemperature | -25C~+85C |
| Ambient Temperature | -10ºC~+85 ºC |
| Dielectric Strength | 1500VAC,1 Minute |
| Type | ROCKER SWITCH |
| Elactric life | >10000 Cycles |
| Electrical Life | >50000 Cycles |
| Terminals & Mid pins | Copper with silver plated |
| Contacts | Copper with compound silver |
| Terminals & Mid pins | Copper with silver plated |
| Experimental Current | Starting Condition | Experimental Time | Expect Result |
| 1In | Cold Start | 1h | Not Trip |
| 1.5In | Followed The Experiment | t<=1h | Trip |
| 2In | Cold Start | (t1)2s≤t≤60s(t2) | Trip |
| 6In | Cold Start | (t3)0.1s≤t≤2ss(t4) | Trip |
| 10In | Cold Start | (t5)0.02s≤t≤0.5s(t6) | Trip |
APPLICATION
-------------------------------------------
16A ON-OFF Lamp Double 6 Pins Rocker Switch With Dot is widely used
in household appliances, electric force, telecommunications,
machine tool, vessel, textile, printing, Mining machine, Mustic
Instrument, etc.
--Illuminated rocker switch, lighted rocker switch, waterproof rocker
switch, 12V rocker switch, on off rocker switch, on off switch, 16a
rocker switch, dpdt rocker switch, kcd2 rocker switch, kcd4 rocker
switch, kcd1 rocker switch, kcd3 rocker switch, boat switch.
