| Categories | 1550nm EDFA |
|---|---|
| Brand Name: | JiZhong |
| Model Number: | JZEDFA |
| Certification: | CE, ROHS |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000pcs per month |
| Delivery Time: | 5 work days |
| Packaging Details: | Standard export package |
| Working bandwidth: | 1535~1565nm |
| Input optical power range: | -3~+10dBm |
| Output optical power: | 13~24dBm |
| Output power stability: | 0.5dB |
| Power consumption: | <=20W |
| Dimension: | 440x250x7mm |

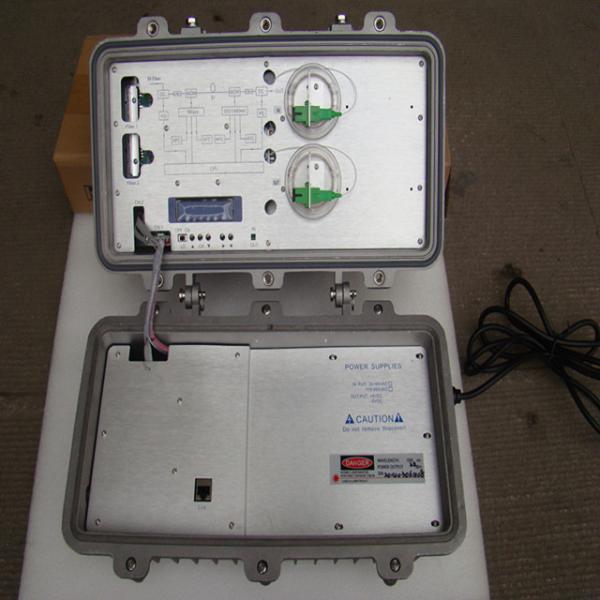

Outdoor JASU Laser 1550nm Fiber Optical Amplifier EDFA For CATV
JZEDFA
Functional Characteristics:
* Die casting Aluminum Alloy shell, strong heat dissipation performance;
* Outdoor waterproof type, highly reliability design;
* Adopting international famous brand low noise pump laser, low distortion, wide frequency band, high output optical ower;
* Adopting imported high performance Erbium doped fiber, high energy conversion efficiency;
* RJ45 network management internet, support international II type network management transponder;
Technical Parameters:
| Items | Unit | Parameters |
| Working Bandwidth | nm | 1535~1565 |
| input optical power range | dBm | -3~+10 |
| Output Optical power | dBm | 13~24 |
| Output power stability | dB | +-0.5 |
| Noise factor | dB | <=5 |
| Noise factoe classical value | dB | 4.5 |
| Optical reflection loss | dB | input port >50 |
| dB | output port >50 | |
| Pump leak power | dB | input port <=-30 |
| dB | output port <=-30 | |
| C/N | dB | >=51 |
| C/CTB | dB | >=65 |
| C/CSO | dB | >=63 |
| Power consumption | W | <=20 |
| Dimension(LxWxH) | mm | 440x250x170/260x230x150 |
|
