| Categories | Air Pump Motor |
|---|---|
| Brand Name: | Retel |
| Model Number: | D77 Series |
| Certification: | CCC,CE, RoHS |
| Place of Origin: | China |
| MOQ: | 1000pcs |
| Price: | $20~$22/pc |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000PCS/Month |
| Delivery Time: | 3weeks |
| Packaging Details: | 1PCS/CTN |
| Type:: | DC Brushed Motor |
| Voltage:: | 12VDC 24VDC 36VDC 48VDC |
| Power:: | 45~250 watts |
| Speed Range:: | up to 9,000 rpm |
| Certification:: | CE, ETL, CAS, UL |
| Operational Temperature:: | -20°C to +40°C |
| Duty:: | S1, S2 |
| Price:: | competitive |
| Company Info. |
| Retek Motion Co., Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
This series brushed DC motor(Dia. 77mm) applied rigid working circumstances. Retek Products manufactures and supplies an array of value-added brushed dc motors based on your design specifications. Our brushed dc motors have been tested in the harshest industrial environmental conditions, making them a reliable, cost-sensitive and simple solution for any application.
Application:
Medical engineering,Automatization,Building Automation,Agriculture Motive
Specification:
| Voltage Range: | 12VDC,24VDC,130VDC,162VDC |
| Output Power | 45~250 watts |
| Duty | S1, S2 |
| Speed Range | up to 9,000 rpm |
| Operational Temperature: | -20°C to +40°C |
| Bearing Type | durable brand ball bearings |
| Insulation Grade | Class B, Class F, Class H |
| Optional shaft material | #45 Steel, Stainless Steel, Cr40 |
| Optional housing surface treatment | Powder Coated, Electroplating,Anodizing |
| Housing Type | Air Ventilated, Water Proof IP68. |
| Slot Feature | Standard Straight Slots- Skewed Slots Feature Available |
| EMC/EMI Performance | pass all EMC and EMI testing. |

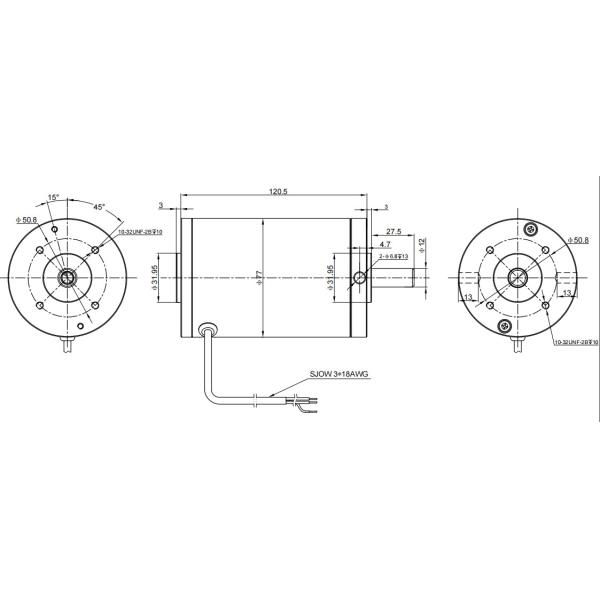

Dimension:

Curve @130VDC:

|
