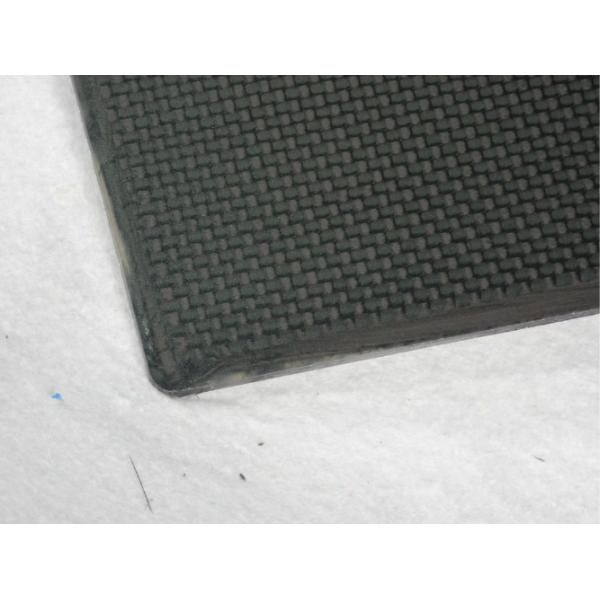

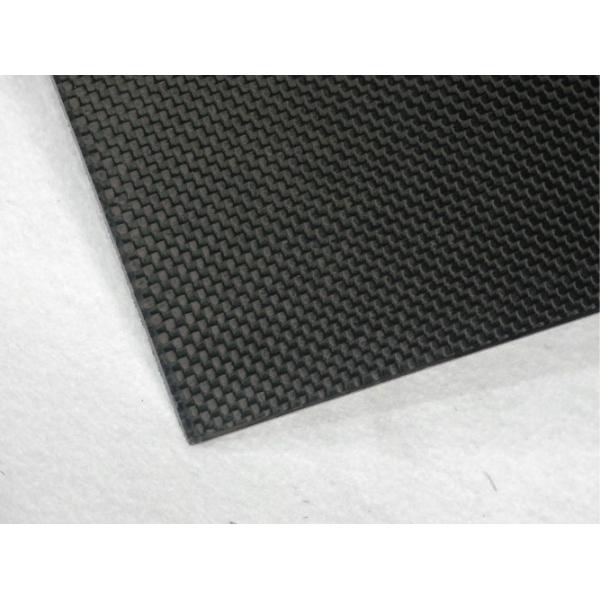

3K Twill Plain / Light Weight / Carbon fibre Plate composite sheet 100mm*200mm*2.0mm

3K 100mm*200mm*2.0mm Twill Plain / Light Weight / Carbon Fiber Plate composite sheet.

Introduction

Carbon fiber carbon materials have been in the areas of military and civilian industry has a wide range

of applications.From aerospace, aviation, automobile, electronic, mechanical, chemical, textile and other

civilian industry to sports equipment and leisure products and so on.Carbon fiber reinforced composite

material can be used in aircraft manufacturing, and other areas of the military, and industrial area, such

as wind power blades, electromagnetic shielding, people Body such as ministry ligament substitute

material and used in the manufacture of rocket shell, powerboat, industrial robots, automobile plate spring and the drive shaft, etc.The bat, and other areas of the sports.Carbon fiber is a typical new

industrial materials in the field of high-tech.

Product name: carbon fiber sheet
Product material: carbon fiber, glass fiber, carbon fiber glass composite
Product appearance: 3 k woven grain, polishing, matte, paint
Product specification: according to customer requirements
Product use: decorative construction, home furniture, display advertising, building materials, sanitary

ware, sports supplies, yacht ship, etc

Product features

1. Light weight, high strength
2. High temperature resistant, corrosion resistant
3. The friction resistance, high service life.

Specification

The characteristics of

Carbon fiber products: reinforcement unidirectional carbon fiber reinforced plate, the molding process is

to carbon fiber in the mold after impregnating resin curing and continuous pultrusion.USES the high

quality carbon fiber raw material with good basic resin, carbon fiber sheet has high tensile strength,

corrosion resistance, shock resistance, good impact resistance and other properties.
Made of carbon fiber unidirectional plate can give full play to the strength and elastic modulus, of the

carbon fiber in the construction can be exempted from resin curing stage of carbon fiber unidirectional

cloth, high utilization efficiency of strength, convenient construction.

(1) High tensile strength, 7 to 10 times that of equal section steel.
(2) Light weight, density is only 1/4 of ordinary steel.
(3) Good durability, chemical impedance and bad environment, climate change, damage.
(4) Section construction convenient and quick, energy saving, easy to guarantee of construction quality.
(5) The applicability is wide and concrete members, steel structure, wooden for reinforcement.Can greatly

improve bearing capacity, seismic performance and durability of the components.

Display

Shanghai Lijin focuses on the Carbon Fiber industry and offers carbon fiber tubes, plates, and aluminum CNC services.

Being experienced in the carbon fiber applications for over 7 years, Shanghai Lijin manages customized production according to various industry standards. Shanghai Lijin started to keep in stock for some standard

sized and frequently ordered tubes and plates. This enables Shanghai Lijin to make prompt delivery. Not only

can Shanghai Lijin complete mass production orders in short period, we can even ship normal sample, prototype orders of Carbon Fiber Plate CNC parts in just SEVEN days after order confirmation when the

drawings are available. Shanghai Lijin is dedicated to solve any technical points during the production and new item developing to ensure the quality.

Carbon Fiber tube production is Shanghai Lijin’s core business and occupies 70% of our turnover.
The carbon fiber tubes Shanghai Lijin mainly produce is table-rolled and oven thermoset. The tubes can be Full Carbon or Carbon Fiber and Fiberglass composite, depending on the application, weight limit,mechanical

strength and surface requirement.Shanghai Lijin offers top quality ROUND carbon fiber tubes. The general OD tolerance we achieve is +/-0.10mm and it can be even +/-0.05mm after our special surface process.

The maximum length of the tube can be 5500mm.

Besides the traditional table-rolled carbon fiber tubes, Shanghai Lijin also offers REAL Filament wound carbon fiber tubes,which are widely used for mechanical strength like auto driving shaft, antennas, even for military

applications. The filament wound carbon tubes are wound at a certain angle like 30 or 45 degree. We invested the new production line from Jun 2013 and this increases Shanghai Lijin’s advantage in the carbon

fiber tube industry. There are just a few real filament wound carbon fiber tube manufacturers in domestic

China and we are one of them.


Since the rapid growth of UAV in the international market, instead of the standard plane like Phantom from DJI, RC fans are getting more interested in the customized multicopters. As carbon fiber is the most preferred

material for UAV, Carbon Fiber CNC parts demand is increasing. Shanghai Lijin sticks to offering OEM service for the international market, fine quality and prompt delivery.To ensure the thickness tolerance +/-0.10mm and minimum warp of the Carbon Fiber plates that are used for the cutting, Shanghai lijin execute high standard to

the plate production. For the normal thicknesses including 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm,
Shanghai Lijin keeps regular stock, to make sure the raw material will be available for cutting immediately when order is firmed.Experienced engineers are in Shanghai Lijin’s office ready to deal with different types of

drawings from customers. No matter the drawing formats are .DWG, .DXF that can be edited by AutoCAD

and used directly for production, 3D drawings like .IGS, or even draft drawings, our staff can do adjustment and change to customer’s idea. Our engineers are also good at English communication, Email and IM is easy

for them. Editing drawings for customers is FREE* of charge. Shanghai Lijin is having several professional CNC machines for carbon fiber cutting and drilling, with the capacity of cutting 20-50pcs standard full sized plate per day. The carbon fiber chassis general cutting tolerance Shanghai Lijin offer is +/-0.02mm. The

special designed cutting solution ensures the smoothness of the cutting edge.

‘Customers’ Persuit for Change, Lijin’s Motivation for Growth’, Shanghai Lijin takes customers’ demand for center, enhances the
customer satisfaction, and grows with customer.
