| Categories | High Brightness TFT Display |
|---|---|
| Brand Name: | SAEF |
| Model Number: | SFTO2700RX-7322AN |
| Certification: | ISO9001 / ISO14000 |
| Place of Origin: | ShenZhen / China |
| MOQ: | 3 pcs |
| Price: | the lowest market price guaranteed |
| Payment Terms: | PayPal, T/T, Western Union, Ali-Pay, WeChat Pay |
| Supply Ability: | 3000K pcs per month |
| Delivery Time: | 1-5 weeks |
| Packaging Details: | Standard Exportation Package |
| Screen Size: | 27-inch Diagonal |
| Resolution: | 1920×1080 Pixels (RGB Stripe) |
| Brightness: | 1000 cd/m² |
| Storage Temp.: | -20°C to +60°C |
| Operating Temp.: | 0°C to +50°C |
| Contrast Ratio: | 1000:1 (Typ.) |
| Interface: | Dual-Channel LVDS (2 Pixel/Clock) |
| Response Time: | 14ms (on/off, Typ.) |
| Backlight: | 50,000 hours |
| Surface Treatment: | AG/AR/AF Coatings (Selectable) |
| Touch Technology: | PCAP(CTP) Optional |
| Cover Glass: | Gorilla Glass/Tempered Glass/PMMA (Custom) |
| Touch Points: | 10-Point Multi-Touch |
| Touch Interface: | I²C/USB/RS232 (Configurable) |
| IC Options: | EETI, ILITEK, Cypress, Goodix |
| Customization: | Silk Printing, Logo, Cut-outs |
| Compliance: | REACH & RoHS Compliant |
| Company Info. |
| Shenzhen Saef Technology Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
1000Nit Sunlight-Readable 27" TFT LCD - Customizable Industrial Display Solution
Saef Technology's SFTO2700SM-7322AN is a high-brightness 27-inch TFT LCD engineered for challenging environments. With 1000 nits peak luminance, anti-glare 3H hardened surface, and 178° wide viewing angles, it delivers exceptional visibility in direct sunlight – ideal for outdoor kiosks, industrial HMIs, and medical equipment across Europe and North America.
✅ Ultra-HD Clarity: 1920x1080 FHD resolution with 16.7M colors
ensures crisp imaging.
✅ Rugged Reliability: Operates in -20°C~60°C extremes (storage) and
withstands thermal shock (24 cycles tested).
✅ Power-Efficient: Only 5.3W max consumption despite 1000nit
output.
✅ Longevity: 50,000-hour LED backlight (50% brightness retention).
Tailored to Your Needs
We provide end-to-end customization for OEM/ODM partners:
Panel Modifications: Resize displays (non-standard dimensions supported).
Interface Flexibility: LVDS, eDP, HDMI conversions.
Firmware Integration: Custom OSD, gamma adjustment, power sequencing.
Rapid Prototyping: 4-week lead time for samples.
Ideal for specialized applications: Aviation displays, military
vehicles, high-luminance medical monitors.
Request Customization
Contact sales2@saef.com.cn for IP65 sealed versions, capacitive touch options, or custom bezel designs.
Specifications
| Items | Unit | Specification |
| Screen Diagonal | mm | 27.0” |
| Active area | mm | 597.888(H) x 336.312(V) |
| Pixels H x V | - | 1920(x3) x 1080 |
| Pixels Pitch | um | 31.14(per one triad) x31.14 |
| Pixel Arrangement | - | R.G.B. Vertical Stripe |
| Display Mode | - | Normally Black |
| Response Time | Msec | 14ms (typ., on/off) |
| Weight | Grams | TBD |
| Electrical Interface | - | Dual channel LVDS,8 bits RGB data input |
| Support Color | - | 16.7M colors |
| Surface Treatment | - | Anti-Glare,3H |
| Operating Temperature | ℃ | 0 to +50 |
| Storage Temperature | ℃ | -20 to +60 |
External Dimensions
Interface Pin Definition
| Pin No. | Symbol | Description |
| 1 | RxO0- | Negative LVDS differential data input (Odd data) |
| 2 | RxO0+ | Positive LVDS differential data input (Odd data) |
| 3 | RxO1- | Negative LVDS differential data input (Odd data) |
| 4 | RxO1+ | Positive LVDS differential data input (Odd data) |
| 5 | RxO2- | Negative LVDS differential data input (Odd data) |
| 6 | RxO2+ | Positive LVDS differential data input (Odd data) |
| 7 | BIST | BIST |
| 8 | RxOCLK- | Negative LVDS differential clock input (Odd clock) |
| 9 | RxOCLK+ | Positive LVDS differential clock input (Odd clock) |
| 10 | RxO3- | Negative LVDS differential data input (Odd data) |
| 11 | RxO3+ | Positive LVDS differential data input (Odd data) |
| 12 | RxE0- | Negative LVDS differential data input (Even data) |
| 13 | RxE0+ | Positive LVDS differential data input (Even data) |
| 14 | GND | Ground |
| 15 | RxE1- | Negative LVDS differential data input (Even data) |
| 16 | RxE1+ | Positive LVDS differential data input (Even data) |
| 17 | GND | Ground |
| 18 | RxE2- | Negative LVDS differential data input (Even data) |
| 19 | RxE2+ | Positive LVDS differential data input (Even data) |
| 20 | RxECLK- | Negative LVDS differential clock input (Even clock) |
| 21 | RxECLK+ | Negative LVDS differential clock input (Even clock) |
| 22 | RxE3- | Negative LVDS differential data input (Even data) |
| 23 | RxE3+ | Positive LVDS differential data input (Even data) |
| 24 | GND | Ground |
| 25 | CTL | CTL_DVR |
| 26 | CE | CE_DVR |
| 27 | NC | No connection |
| 28 | VDD | Power Supply Input Voltage 5V |
| 29 | VDD | Power Supply Input Voltage 5V |
| 30 | VDD | Power Supply Input Voltage 5V |
Optical Characteristics
| Paramete | Conditions | Min. | Typ. | Max. | Unit | |
Viewing Angle (CR>10) | Horizontal | θL | 89 | - | degree | |
| θR | 89 | - | ||||
| Vertical | θT | 89 | - | |||
| θB | 89 | - | ||||
| Contrast Ratio | Center | 700 | 1000 | - | - | |
| Response Time | Tr+Td | - | 14 | 20 | ms | |
CF Color Chromaticity (CIE1931) | Red x | Typ. -0.03 | 0.646 | Typ. +0.03 | - | |
| Red y | 0.341 | - | ||||
| Green x | 0.327 | - | ||||
| Green y | 0.612 | - | ||||
| Blue x | 0.143 | - | ||||
| Blue y | 0.041 | - | ||||
| White x | 0.283 | - | ||||
| White y | 0.289 | - | ||||
| Center Luminance of white | YLI | 800 | 1000 | cd/m2 | ||

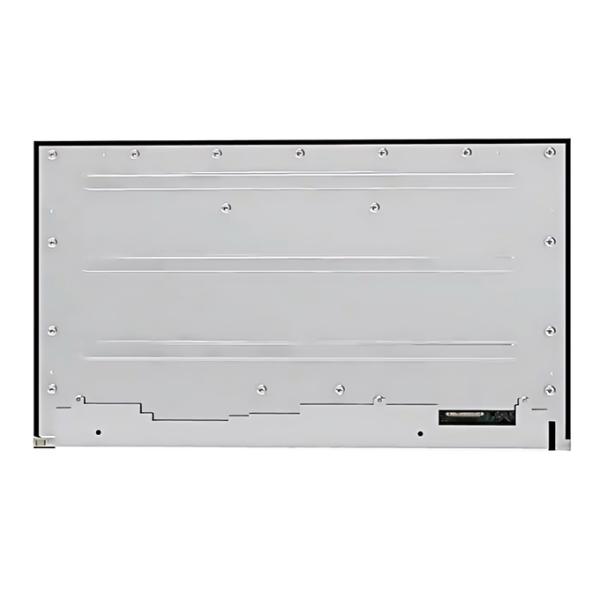

Product Image
|
